3 Pipe Railing Stair Bottom Posts – Angle Mount
3 Pipe Railing Stair Bottom Posts – Angle Mount For PFC Staircases
Advantage Industries 3 Pipe Railing post for staircases suit staircases between 30-45 degrees. Our modular keyclamp system is fast and easy to install with no-site welding.
3 Rails are required for building classified as class 7b and 8
Fittings
Description

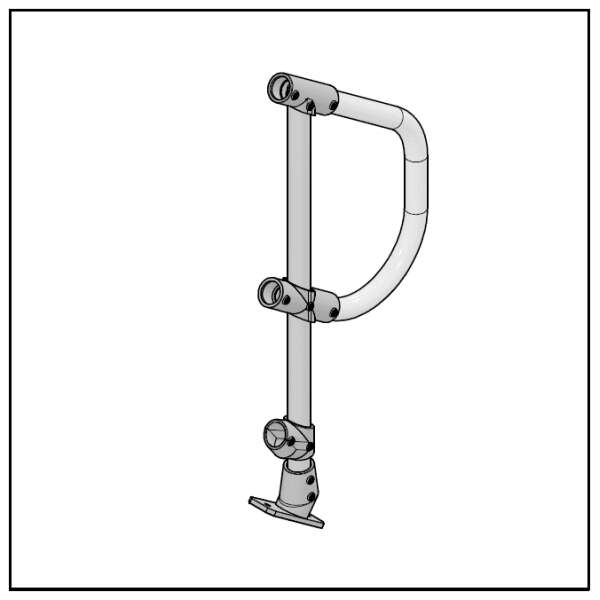

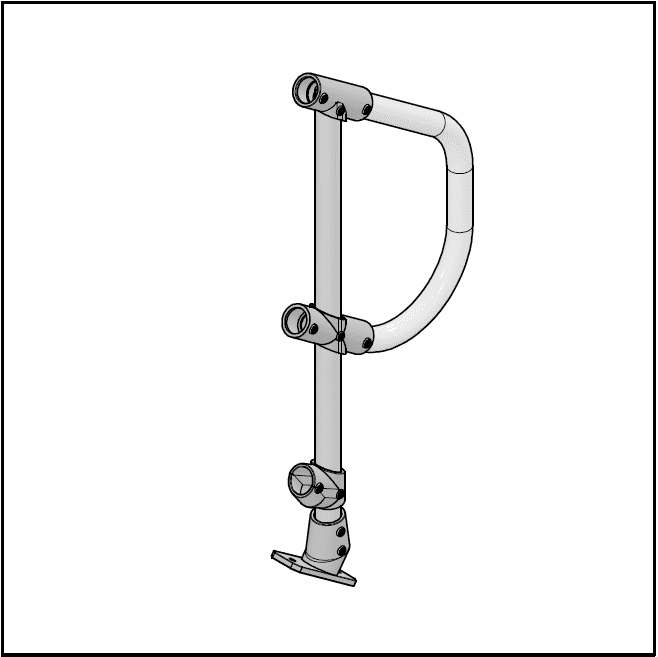

3 Pipe Railing Stair Bottom Posts – Angle Mount
- 42mm post pipe
- KeyClamp fittings – No welding
- Hot dipped galvanized finish

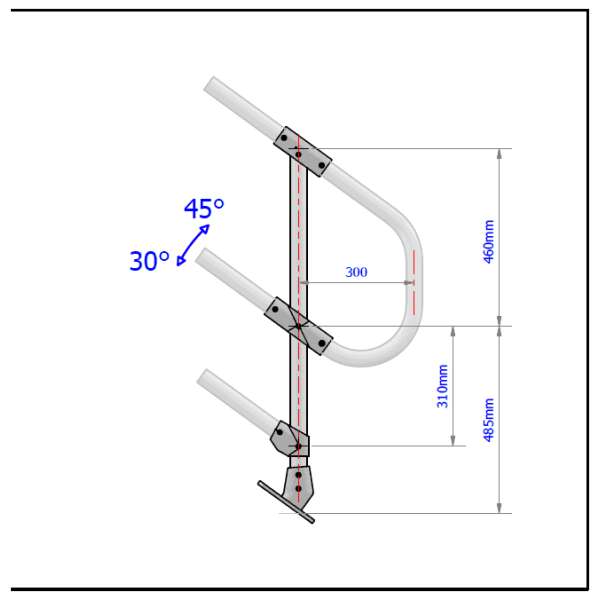

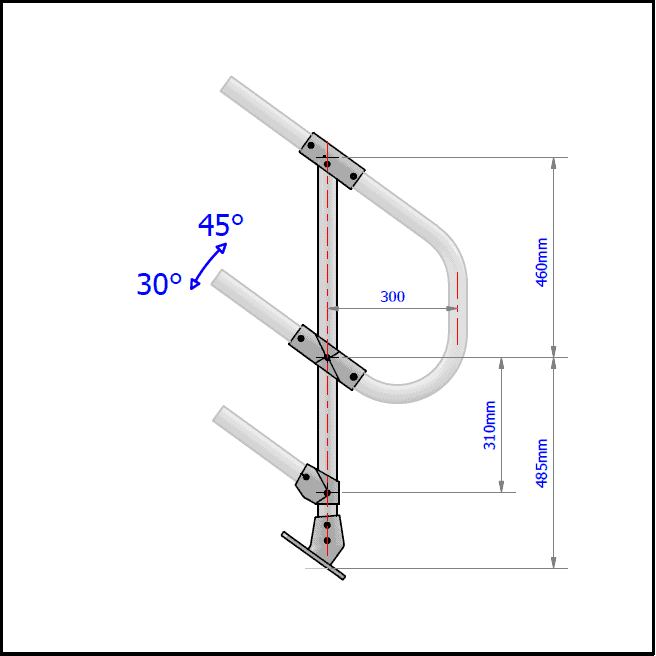

Advantage Industries balustrade posts are ideal for Class 7b and 8 Buildings (warehouses / factory’s etc) where the 3rd rail is required to ensure a 150 mm sphere is unable to pass through the opening between the nosing line of the stair treads and the rail or between the rail and the floor of the landing, balcony or the like; and the opening between rails must not be more than 460 mm. refer to NCC v1 D2.16 – 2. Barrier openings (b)
Our modular KeyClamp system is fast and easy to install with no-site welding.
We have bottom, intermediate and top posts.
