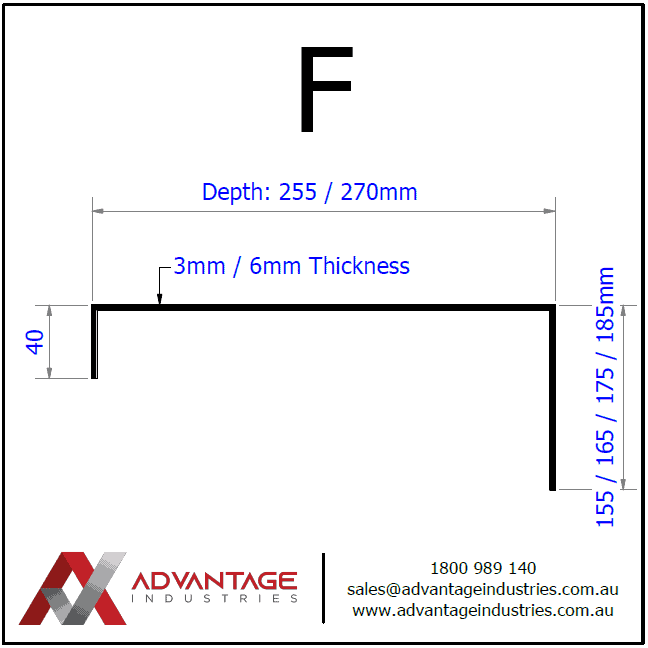

Checker Plate Tread Type F
$59.35
Advantage Industries Steel treads are manufactured using high grade checker plate steel. Steel treads can be manufactured to suit your exact needs and requirements. treads can be manufactured with return folds and different depths, widths and fold lengths. We can plasma cut the tread end plate in house to suit your drawings.
Tread End Plates: Holes suit M12 Bolts
$59.35
Description
Checker Plate Tread – Type D
Advantage Industries Steel treads are manufactured using high grade checker plate steel. Steel treads can be manufactured to suit your exact needs and requirements. treads can be manufactured with return folds and different depths, widths and fold lengths. We can plasma cut the tread end plate in house to suit your drawings.
Tread End Plates: Holes are 13-14mm to suit M12 Bolts
Additional information
| Plate | 3mm Thick Steel, 6mm Thick Steel |
|---|---|
| ←A→ | 600mm, 700mm, 800mm, 900mm, 1000mm, 1100mm, 1180mm |
| ←B→ | 225mm, 250mm, 275mm, 300mm |
| Finish | Hot Dip Galvanized, Untreated/Black Steel |
