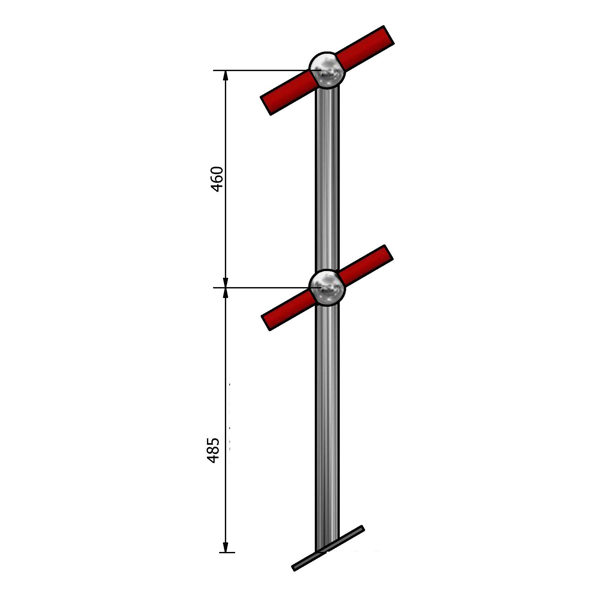

Angle Mount Post

Platform Post – Angled

These posts are used on staircases with PFC stringers or on angled walls.

Description

Ball Rail System Specifications

Advantage Industries ball rail posts comply with Australia Standards AS1657-2018.

General

Typical post spacing is 2000mm centres max.

Handing of level stanchions is ascertained from the platform/walkway facing the stanchion.

Handing of angled stanchions is ascertained from standing at the bottom of the staircase or ramp and looking up the staircase or ramp.

Finish

  • Untreated
  • Hot Dipped Galvanized

Hot dipped galvanized in accordance with AS/NZS 4680:2006

Materials

  • Stanchions – 40NB pipe (48.3mm OD)
  • Base plates – 10mm plate with 2 x 18mm holes
  • Handrails – 32NB pipe (42.4mm OD)
  • Kneerails – 25NB pipe (33.7mm OD)
  • Kick Plates – 100 x 6 Flat Bar
  • Kick Plate Brackets – 40 x 40 Angle

Platform Posts

Platform posts are ideal for staircases with PFC and RHS stringers. Platform posts are the most common post type used for walk ways, mezzanine floors, road sides and ramps.

  • Staircase with PFC Stringers
  • Walk ways
  • Mezzanine floors
  • Loading docks and ramps
  • Retaining Walls



Additional information

Finish

Hot Dip Galvanized, Untreated/Black Steel

Angle

36 Degrees, 39 Degrees, 42 Degrees, 45 Degrees

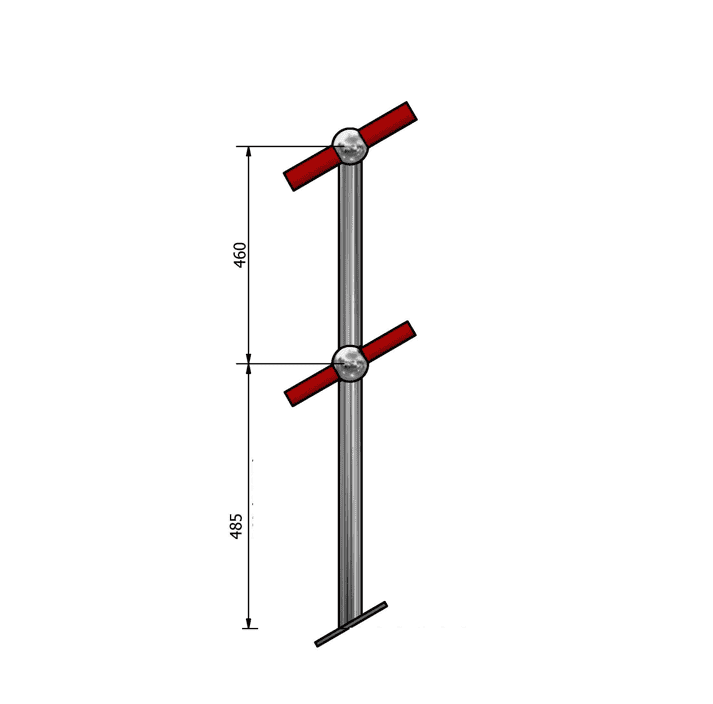

Angle Mount Post
