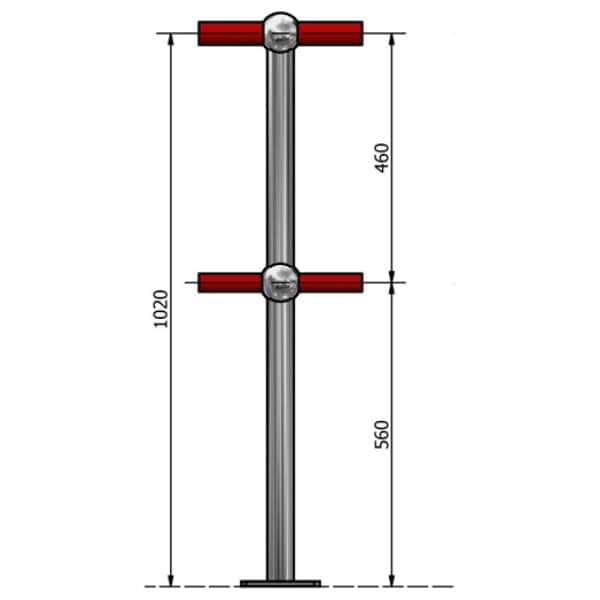

Platform Post
Description
Ball Rail System Specifications
Advantage Industries ball rail posts comply with Australia Standards AS1657-2018.
General
Typical post spacing is 2000mm centres max.
Handing of level stanchions is ascertained from the platform/walkway facing the stanchion.
Handing of angled stanchions is ascertained from standing at the bottom of the staircase or ramp and looking up the staircase or ramp.
Finish
- Untreated
- Hot Dipped Galvanized
Hot dipped galvanized in accordance with AS/NZS 4680:2006
Materials
- Stanchions – 40NB pipe (48.3mm OD)
- Base plates – 10mm plate with 2 x 18mm holes
- Handrails – 32NB pipe (42.4mm OD)
- Kneerails – 25NB pipe (33.7mm OD)
- Kick Plates – 100 x 6 Flat Bar
- Kick Plate Brackets – 40 x 40 Angle

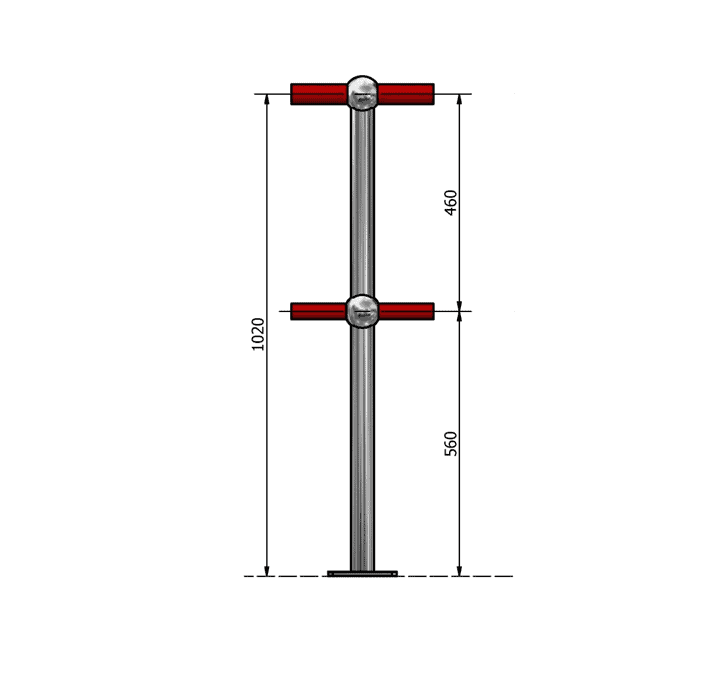

Platform Posts
Platform posts are ideal for staircases with PFC and RHS stringers. Platform posts are the most common post type used for walk ways, mezzanine floors, road sides and ramps.
- Staircase with PFC Stringers
- Walk ways
- Mezzanine floors
- Loading docks and ramps
- Retaining Walls
Additional information
| Finish | Hot Dip Galvanized, Untreated/Black Steel |
|---|---|
| Kick Plate Bracket | Single Kick Plate Bracket – 60, Single Kick Plate Bracket – 85, Double Kick Plate Bracket – 60, Double Kick Plate Bracket – 85, None |
