Angled Side Offset Post

Side Offset Post – Angled

These posts are used on staircases with PFC stringers.

Description

Ball Rail System Specifications

Advantage Industries ball rail posts comply with Australia Standards AS1657-2018.

General

Typical post spacing is 2000mm centres max.

Handing of level stanchions is ascertained from the platform/walkway facing the stanchion.

Handing of angled stanchions is ascertained from standing at the bottom of the staircase or ramp and looking up the staircase or ramp.

Finish

  • Untreated
  • Hot Dipped Galvanized

Hot dipped galvanized in accordance with AS/NZS 4680:2006

Materials

  • Stanchions – 40NB pipe (48.3mm OD)
  • Base plates – 10mm plate with 2 x 18mm holes
  • Handrails – 32NB pipe (42.4mm OD)
  • Kneerails – 25NB pipe (33.7mm OD)
  • Kick Plates – 100 x 6 Flat Bar
  • Kick Plate Brackets – 40 x 40 Angle

Side Offset Posts

Side Offset posts are ideal for side mounting onto staircases with PFC and UB stringers. Side Offset posts are typically used on mining infrastructure.

  • Side mounting on Staircase with PFC and UB Stringers
  • PFC / UB Walk ways
  • Mining infrastructure

Additional information

Handing

Left, Right

Finish

Hot Dip Galvanized, Untreated/Black Steel

Angle

36 Degrees, 39 Degrees, 42 Degrees, 45 Degrees

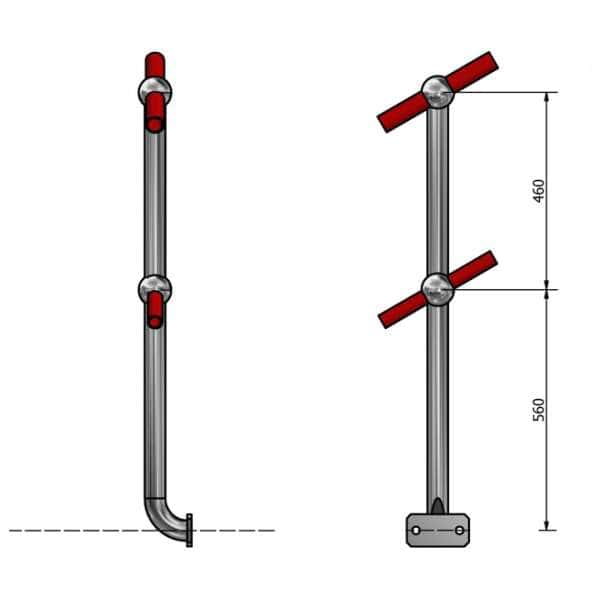

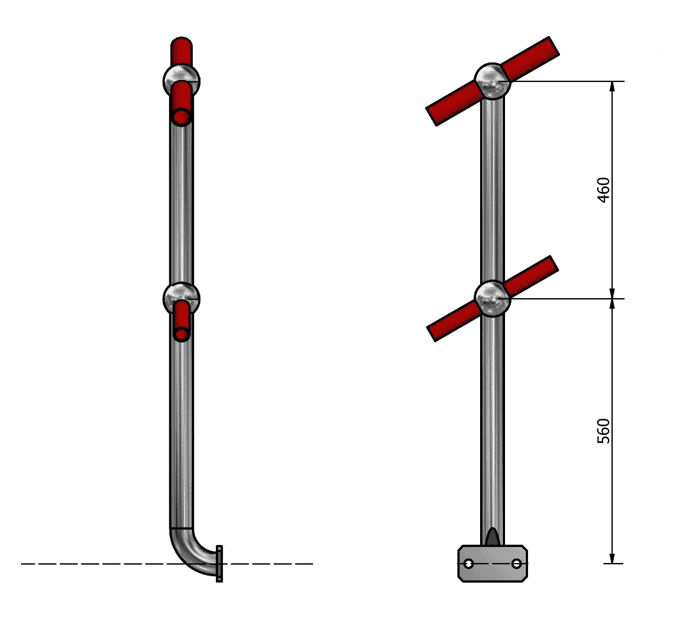

Side Offset Post - Angled - LEFT - SOAL 1
Angled Side Offset Post
